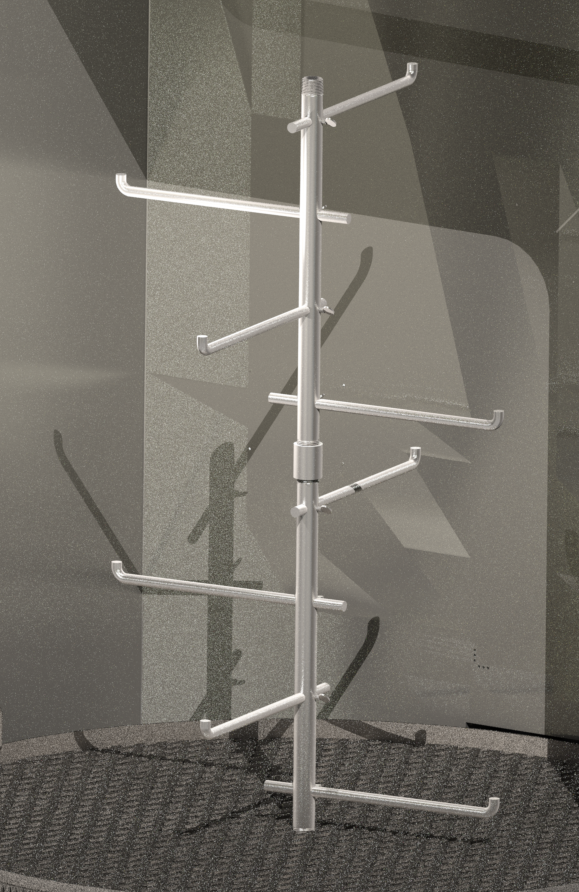

Parts Tree
Parts cleaner machines for industrial use

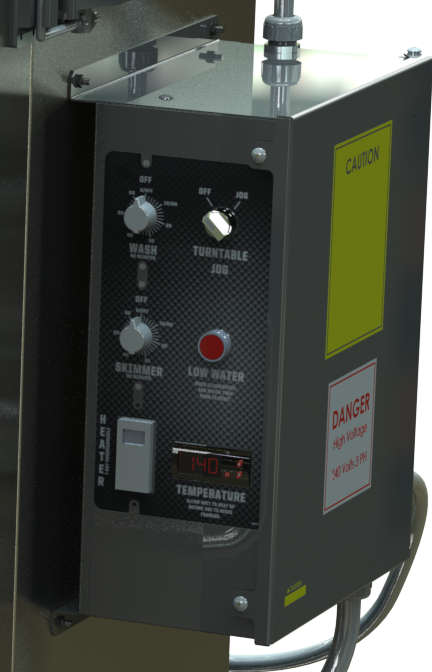

9800 Control Box
Parts cleaner solution for automotive maintenance
Engine block washer for industrial-scale cleaning
Spray cabinet parts washer for automotive and industrial use

9600 SS

Front load spray cabinet

Request a Quote

The 9600 front load spray cabinet is our mid-size aqueous front load automated spray wash machine with a large and well supported 30″ turntable with 1000 lbs. weight capacity. The powerful spray wash is designed to clean efficiently and effectively.

Function

High pressure spray paired with detergents and heat remove greases, sludge, dirt, and debris to provide you clean parts with minimal effort. Spray cabinets are exceptional at surface cleaning, and the washing effect rinses down parts thoroughly.

Features

  • 30" Turntable
  • 40" Working Height
  • 1000 Lbs. Weight Capacity
  • Outrigger Turntable Support for Uneven Loading
  • No Maintenance Turntable Bearing Block

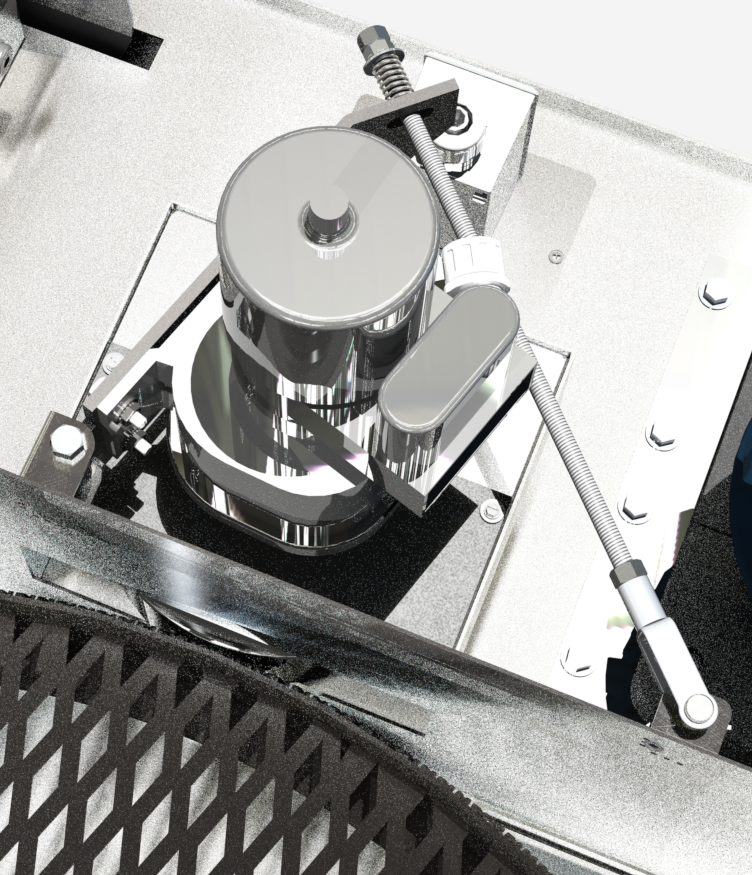

  • Rugged Wheel Drive System
  • 70 Gallon Tank Capacity
  • Up to 18kW Heating
  • 0-60 Min Wash Timer
  • Thermostat with Digital Temp Display
  • Adjustable Heating from 120°F to 180°F
  • 7-Day Programmable Heating Timer
  • 3 HP Vertical Sealless Pump 100 GPM @ 37 PSI
  • Stainless Steel Fan Nozzles
  • Intermediate Spray Bar
  • 304 Stainless Steel Construction
  • Door Safety Interlock
  • Low Water Protection Sensor and Indicator
Specifications

Overall Dimensions: 42” L x 50” W x 65” H

Shipping Dimensions: 52” L x 59” W x 77” H

Shipping Weight: 1,100 Lbs.
